🛜 ESPectre 👻

Motion detection system based on Wi-Fi spectre analysis (CSI), with native Home Assistant integration via ESPHome.

[!TIP] New ML Detector: Neural network-based motion detection. No calibration required, runs on-device. This is an experimental feature, and feedback is welcome in the dedicated ML detector discussion. A snapshot build with the latest changes is also available (use -ml assets for the machine learning based detector), or follow Setup guide for custom configuration.

---

Table of Contents

• In 3 Points
• What You Need
• Quick Start
• How It Works
• What You Can Do With It
• Sensor Placement Guide
• System Architecture
• FAQ
• Security and Privacy
• Technical Deep Dive
• Two-Platform Strategy
• Future Evolution
• Documentation
• Media
• Related Projects
• Acknowledgments
• License
• Author

---

In 3 Points

1. What it does: Detects movement using Wi-Fi (no cameras, no microphones)
2. What you need: A ~€10 ESP32 device (S3 and C6 recommended, other variants supported)
3. Setup time: 10-15 minutes

---

What You Need

Hardware

• 2.4GHz Wi-Fi Router - the one you already have at home works fine
• ESP32 with CSI support - ESP32-C6, ESP32-S3, ESP32-C3, ESP32 (original) or other variants. See SETUP.md for the complete platform comparison table.

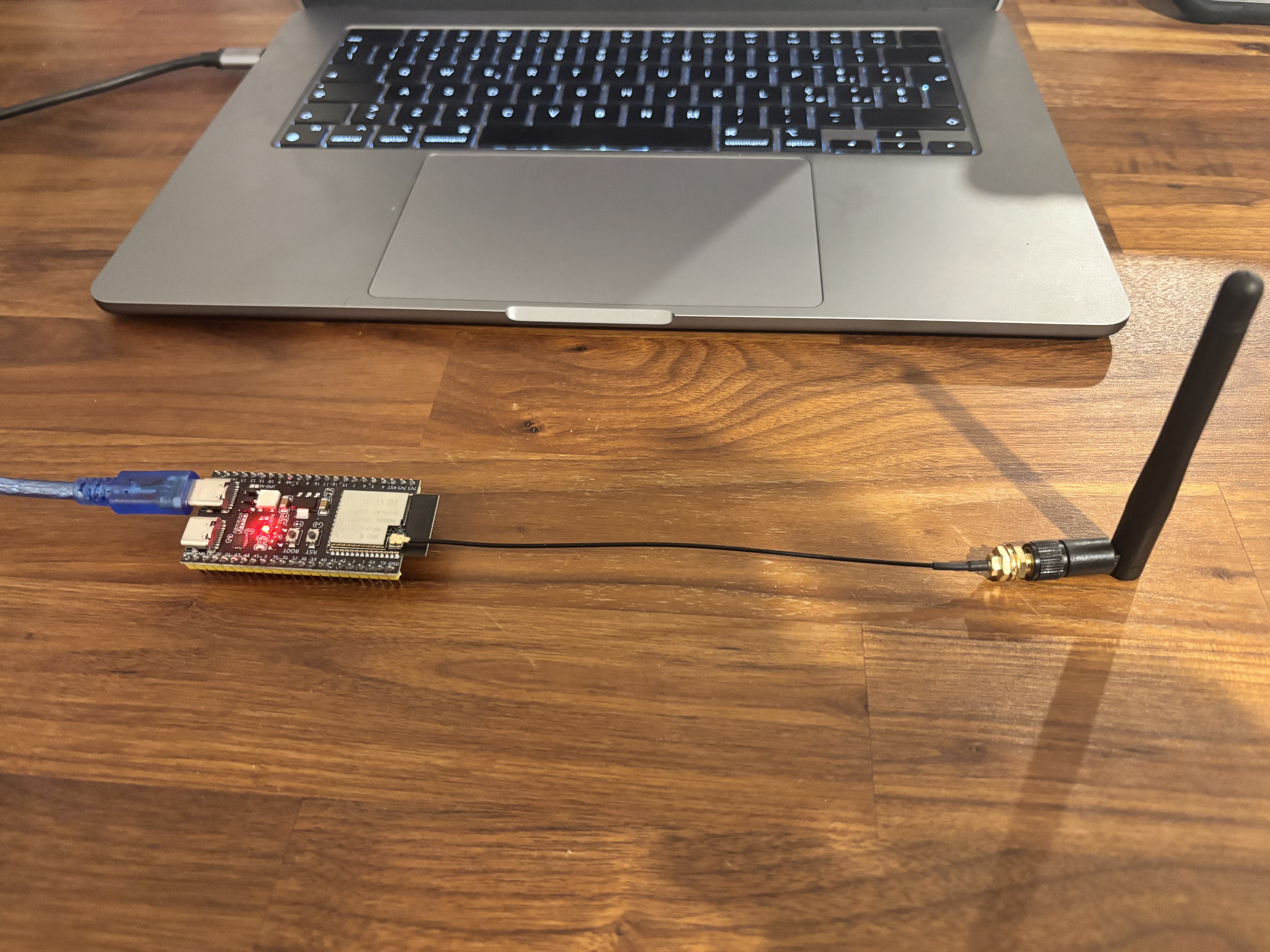

ESP32-S3 DevKit with external antennas

Software (All Free)

• Home Assistant (on Raspberry Pi, PC, NAS, or cloud)
• ESPHome (integrated in Home Assistant or standalone)

Required Skills

• Basic YAML knowledge for configuration
• Home Assistant familiarity (optional but recommended)
• NO programming required
• NO router configuration needed

---

Quick Start

Setup time: ~10-15 minutes
Difficulty: Easy (YAML configuration only)

1. Setup & Installation: Follow the complete guide in SETUP.md
2. Tuning: Optimize for your environment with TUNING.md

Home Assistant dashboard with real-time motion detection, threshold control, and debug sensors

---

How It Works

When someone moves in a room, they "disturb" the Wi-Fi waves traveling between the router and the sensor. It's like when you move your hand in front of a flashlight and see the shadow change.

The ESP32 device "listens" to these changes and understands if there's movement.

Advantages

• No cameras (total privacy)
• No wearables needed (no bracelets or sensors to wear)
• Works through walls (Wi-Fi passes through walls)
• Very cheap (~€10 total)

Want to understand the technical details? See ALGORITHMS.md for CSI explanation and signal processing documentation.

---

What You Can Do With It

Practical Examples

• Home security: Get an alert if someone enters while you're away
• Elderly care: Monitor activity to detect falls or prolonged inactivity
• Smart automation: Turn on lights/heating only when someone is present
• Energy saving: Automatically turn off devices in empty rooms
• Child monitoring: Alert if they leave the room during the night
• Climate control: Heat/cool only occupied zones

---

Where to Place the Sensor

Optimal sensor placement is crucial for reliable movement detection.

Recommended Distance from Router

Optimal range: 3-8 meters

Distance	Signal	Multipath	Sensitivity	Noise	Recommendation
< 2m	Too strong	Minimal	Low	Low	❌ Too close
3-8m	Strong	Good	High	Low	✅ Optimal
> 10-15m	Weak	Variable	Low	High	❌ Too far

Placement Tips

Do:

• Position sensor in the area to monitor (not necessarily in direct line with router)
• Height: 1-1.5 meters from ground (desk/table height)
• External antenna: Use IPEX connector for better reception

Don't:

• Avoid metal obstacles between router and sensor (refrigerators, metal cabinets)
• Avoid corners or enclosed spaces (reduces multipath diversity)

---

System Architecture

Processing Pipeline

ESPectre uses a focused processing pipeline for motion detection:

┌─────────────┐
│  CSI Data   │  Raw Wi-Fi Channel State Information
└──────┬──────┘
       │
       ▼
┌─────────────┐
│  Gain Lock  │  AGC/FFT stabilization (~3 seconds)
│             │  Locks hardware gain for stable measurements
└──────┬──────┘
       │
       ▼
┌─────────────┐
│    Auto     │  Automatic subcarrier selection (once at boot)
│ Calibration │  Selects optimal 12 subcarriers (NBVI)
└──────┬──────┘
       │
       ▼
┌─────────────┐
│  Adaptive   │  auto: P95 × 1.1 | min: P100
│  Threshold  │  or fixed manual value
└──────┬──────┘
       │
       ▼
┌─────────────┐
│   Hampel    │  Turbulence outlier removal
│   Filter    │  (enabled by default)
└──────┬──────┘
       │
       ▼
┌─────────────┐
│  Low-pass   │  Noise reduction (smoothing)
│   Filter    │  (optional, disabled by default)
└──────┬──────┘
       │
       ▼
┌─────────────┐
│ Detection   │  MVS or ML score
│ Evaluation  │  every evaluation_interval packets
└──────┬──────┘
       │
       ▼
┌─────────────┐
│ Hit Filter  │  motion_on_hits / motion_off_hits
│             │  edge-driven IDLE ↔ MOTION
└──────┬──────┘
       │
       ▼
┌─────────────┐
│ Home        │  Edge-driven motion binary +
│ Assistant   │  periodic Movement Score / Threshold
└─────────────┘

Single or Multiple Sensors

┌─────────┐  ┌─────────┐  ┌─────────┐
│ ESP32   │  │ ESP32   │  │ ESP32   │
│ Room 1  │  │ Room 2  │  │ Room 3  │
└────┬────┘  └────┬────┘  └────┬────┘
     │            │            │
     └────────────┴────────────┘
                  │
                  │ ESPHome Native API
                  ▼
         ┌────────────────────┐
         │   Home Assistant   │
         │   (Auto-discovery) │
         └────────────────────┘

Each sensor is automatically discovered by Home Assistant with:

• Binary sensor for motion detection, published immediately on state edges
• Movement score sensor, published on the periodic cadence
• Adjustable threshold (number entity)

Automatic Subcarrier Selection

ESPectre implements NBVI (Normalized Band Variance Index) for automatic subcarrier selection, achieving near-optimal performance (F1>96%) with zero manual configuration. The algorithm selects 12 non-consecutive subcarriers based on stability metrics and spectral diversity.

⚠️ IMPORTANT (MVS mode): Keep the room quiet and still for 10 seconds after device boot. The auto-calibration runs during this time and movement will affect detection accuracy. ML mode skips calibration.

For algorithm details, see ALGORITHMS.md.

---

FAQ for Beginners

Click to expand FAQ

Q: Do I need programming knowledge to use it?
A: No! ESPectre uses YAML configuration files. Just download the example, flash it, and configure WiFi via the ESPHome app or web interface.

Q: Does it work with my router?
A: Yes, if your router has 2.4GHz Wi-Fi (virtually all modern routers have it).

Q: How much does it cost in total?
A: Hardware: ~€10 for an ESP32 device (S3/C6 recommended, other variants also work). Software: All free and open source. You'll also need Home Assistant running somewhere (Raspberry Pi ~€35-50, or any existing PC/NAS).

Q: Do I need to modify anything on the router?
A: No! The router works normally. The sensor "listens" to Wi-Fi signals without modifying anything.

Q: Does it work through walls?
A: Yes, the 2.4GHz Wi-Fi signal penetrates drywall. Reinforced concrete walls reduce sensitivity but detection remains possible at reduced distances.

Q: How many sensors are needed for a house?
A: It depends on size. One sensor can monitor ~50 m². For larger homes, use multiple sensors (1 sensor every 50-70 m² for optimal coverage).

Q: Can it distinguish between people and pets?
A: The system uses a 2-state segmentation model (IDLE/MOTION) that identifies generic movement without distinguishing between people, pets, or other moving objects. For more sophisticated classification (people vs pets, activity recognition, gesture detection), trained AI/ML models would be required (see Future Evolution section).

Q: Does it work with mesh Wi-Fi networks?
A: Yes, it works normally. Make sure the ESP32 connects to the 2.4 GHz band.

Q: How accurate is the detection?
A: Detection accuracy is highly environment-dependent and requires proper tuning. Factors affecting performance include: room layout, wall materials, furniture placement, distance from router (optimal: 3-8m), and interference levels. In optimal conditions with proper tuning, the system provides reliable movement detection. Adjust the segmentation_threshold parameter to tune sensitivity for your specific environment.

Q: What's the power consumption?
A: ~500mW typical during continuous operation. The firmware includes support for power optimization, and deep sleep modes can be implemented for battery-powered deployments, though this would require custom modifications to the code.

Q: If it doesn't work, can I get help?
A: Yes, open an Issue on GitHub or contact me via email.

---

Security and Privacy

Privacy, Security & Ethical Considerations (click to expand)

Nature of Collected Data

The system collects anonymous data related to the physical characteristics of the Wi-Fi radio channel:

• Amplitudes and phases of OFDM subcarriers
• Statistical signal variances
• NOT collected: personal identities, communication contents, images, audio

CSI data represents only the properties of the transmission medium and does not contain direct identifying information.

Privacy Advantages

• No cameras: Respect for visual privacy
• No microphones: No audio recording
• No wearables: Doesn't require wearable devices
• Aggregated data: Only statistical metrics, not raw identifying data

⚠️ Disclaimer and Ethical Considerations

WARNING: Despite the intrinsic anonymity of CSI data, this system can be used for:

• Non-consensual monitoring: Detecting presence/movement of people without their explicit consent
• Behavioral profiling: With advanced AI models, inferring daily life patterns
• Domestic privacy violation: Tracking activities inside private homes

Usage Responsibility

The user is solely responsible for using this system and must:

1. Obtain explicit consent from all monitored persons
2. Respect local regulations (GDPR in EU, local privacy laws)
3. Clearly inform about the presence of the sensing system
4. Limit use to legitimate purposes (home security, personal home automation)
5. Protect data with encryption and controlled access
6. DO NOT use for illegal surveillance, stalking, or violation of others' privacy

---

Technical Deep Dive

For algorithm details (MVS, NBVI calibration, Hampel filter), see ALGORITHMS.md.

For performance metrics (confusion matrix, F1-score, benchmarks), see PERFORMANCE.md.

---

Two-Platform Strategy

This project follows a dual-platform approach to balance innovation speed with production stability:

ESPectre (This Repository) - Production Platform

Target: End users, smart home enthusiasts, Home Assistant users

• ESPHome component with native Home Assistant integration
• YAML configuration - no programming required
• Auto-discovery - devices appear automatically in Home Assistant
• Production-ready - stable, tested, easy to deploy
• Demonstrative - showcases research results in a user-friendly package

Micro-ESPectre - R&D Platform

Target: Researchers, developers, academic/industrial applications

• Python/MicroPython implementation for rapid prototyping
• MQTT-based - flexible integration (not limited to Home Assistant)
• Fast iteration - test new algorithms in seconds, not minutes
• Analysis tools - comprehensive suite for CSI data analysis
• Use cases: Academic research, industrial sensing, algorithm development

Micro-ESPectre gives you the fundamentals for:

• People counting
• Activity recognition (walking, falling, sitting, sleeping)
• Localization and tracking
• Gesture recognition

Development Flow

┌─────────────────────┐     Validated      ┌──────────────────────┐
│   Micro-ESPectre    │ ─────────────────► │      ESPectre        │
│   (R&D Platform)    │    algorithms      │ (Production Platform)│
│                     │                    │                      │
│ • Fast prototyping  │                    │ • ESPHome component  │
│ • Algorithm testing │                    │ • Home Assistant     │
│ • Data analysis     │                    │ • End-user ready     │
│ • MQTT flexibility  │                    │ • Native API         │
└─────────────────────┘                    └──────────────────────┘

Innovation cycle: New features and algorithms are first developed and validated in Micro-ESPectre (Python), then ported to ESPectre (C++) once proven effective.

---

Future Evolution

While ESPectre v2.x focuses on motion detection (MVS + automatic subcarrier selection), the project is exploring machine learning capabilities for advanced applications:

Capability	Status	Description
ML Detector	Experimental	Neural network (MLP 9→32→16→1)
Gesture Recognition	Planned	Detect hand gestures (swipe, push, circle) for smart home control
Human Activity Recognition	Planned	Identify activities (sitting, walking, falling)
People Counting	Planned	Estimate number of people in a room
3D Localization	Research	Indoor positioning (30-50cm accuracy) via phase-coherent antenna array

The ML Detector is already available with detection_algorithm: ml in your YAML configuration. For algorithm details, see ALGORITHMS.md and PERFORMANCE.md for current metrics
The ML data collection and training infrastructure is documented in ML_DATA_COLLECTION.md.

See ROADMAP.md for detailed plans, timelines, and how to contribute.

---

Documentation

ESPectre (Production)

Document	Description
Intro	(This file) Project overview, quick start, FAQ
Setup Guide	Installation and configuration with ESPHome
Tuning Guide	Parameter tuning for optimal detection
Performance	Benchmarks, confusion matrix, F1-score
The Game	Browser game, USB streaming API, interactive threshold tuning
Test Suite	PlatformIO Unity test documentation

Micro-ESPectre (R&D)

Document	Description
Intro	R&D platform overview, CLI, MQTT, Web Monitor
Algorithms	Scientific documentation of MVS, NBVI calibration, Hampel filter
Analysis Tools	CSI analysis and optimization scripts
ML Data Collection	Building labeled datasets for machine learning
References	Academic papers and research resources

Project

Document	Description
Roadmap	Project vision and ML plans
Contributing	How to contribute (code, data, docs)
Changelog	Version history and release notes
Security	Security policy and vulnerability reporting
Code of Conduct	Community guidelines

---

Media

Articles	Title
Medium	How I Turned My Wi-Fi Into a Motion Sensor - Part 1
Medium	How I Turned My Wi-Fi Into a Motion Sensor - Part 2
IoT For All	How I Turned My Wi-Fi Into a Motion Sensor
Hackaday	Make Your Own ESP32-Based Person Sensor, No Special Hardware Needed
Adafruit Learn	ESPectre Human Detector for Feather
Seeed Studio Wiki	Deploying Espectre on Seeed Studio XIAO ESP32 Series with ESPHome

Blog	Discussion
Home Assistant	ESPectre - Wi-Fi Motion Detection for Home Assistant

Videos	Video
@GithubAwesome	ESPectre

Podcasts	Episode
Hackaday	Podcast Episode 355: Person Detectors, Walkie Talkies, Open Smartphones...

---

Related Projects

• radio-presence-scanner: complementary presence-sensing project focused on BLE radio observations from host devices (Python), with optional HTTP dashboard.
• micropython-esp32-csi: custom MicroPython fork exposing ESP32 CSI APIs, used as the firmware foundation for rapid CSI prototyping in the Micro-ESPectre workflow.

---

Acknowledgments

ESPectre leverages the native Wi-Fi CSI capabilities of ESP32 chips. Thanks to Espressif for making CSI accessible in the ESP-IDF framework and for recognizing ESPectre as a community project in their esp-csi repository.

---

License

This project is released under the GNU General Public License v3.0 (GPLv3).

GPLv3 ensures that:

• The software remains free and open source
• Anyone can use, study, modify, and distribute it
• Modifications must be shared under the same license
• Protects end-user rights and software freedom

See LICENSE for the full license text.

Contributions are submitted under GPLv3 and must include a DCO Signed-off-by trailer on each commit (git commit -s).

Author

Francesco Pace
Email: francesco.pace@espectre.dev
LinkedIn: linkedin.com/in/francescopace

If you find ESPectre useful and want to support its development, you can buy me a coffee. It's completely optional. I work on this project because I'm passionate about it. Contributions help me buy new hardware to expand the list of tested and supported devices, and dedicate more time to new features.
